| 基本配置 Basic configuration | 主芯片 CPU | MTK MT6877 8-core 6nm processor 2.4GHz |
| 操作系統 operating system | Android?11.0 | |
| PCBA | 主板+燈板 Main board+LED board | |
| 攝像頭模組 Camera module | 后置FF攝像頭模組：OS12D40（11.3M） FOV：117度（拍照水平視角105°）F/NO=2.2；前置FF攝像頭：格科威 GC5035 5M 水平 50度；后攝攝像頭模組畸變小于16% Rear camera (FF):OS12D40（11.3M） FOV：117°（ Horizontal viewing angle 105 °）F/NO=2.2； Front camera (FF): GC5035 FOV：70° ( Horizontal viewing angle 50°) | |
| Memory | 4+64GB標配；最大可支持6+128GB； Optional RAM up to 6GB, ROM up to 128GB | |
| 充電方式 Charging method | 快速充電功能，硬件兼容PE+（最大9V 2A）和PD3.0（最大12V 3A） 標配5V2A適配器 Charging mode Fast charging function, hardware compatible with PE+(up to 9V 2A) and PD3.0 (up to 12V 3A), standard 5V2A adapter | |
| 紅外燈 IR Light | 2顆 850nm紅外燈，送檢可以滿足：3米距離可視角度范圍內紅外光能覆蓋70%有效面積，3米可以識別面部特征 2PCS,850nm IR LED；Meet GA/T 947.2-2015 industry standard parameter: within a 3-meter visual angle range, infrared light energy covers 70% of the effective area, and 3-meter facial features can be recognized | |
| 白光燈 flash lamp | 1顆 1PCS | |
| 顯示屏+觸摸屏 Display screen&touch screen | 2.4英寸, 480*640 ,MIPI接口 ,單點觸控+手勢電容觸摸屏 2.4 inch, 480 * 640, MIPI interface, single touch+gesture capacitive touch screen | |
| 存儲卡（TF卡） Memory card (TF card) | 內置標配64G（最大512GB） Built-in, standard 64G (up to 512GB) | |
| 喇叭 speaker | 8R,1.5W 25*16mm IP68 防水防塵 8R/1.5W,25*16mm IP68 dustproof and waterproof | |
| 咪頭 MIC | 雙Micphone（硅麥） Dual MEMS MIC | |
| 環境光傳感器 Ambient light sensor | 有（用于控制紅外燈的自動開啟和關閉） Yes, used to control the automatic turning on and off of IR LED | |
| 運動傳感器 Motion sensor | 支持：G-sensor ，陀螺儀 Support: G-sensor, gyroscope | |
| 指南針 compass | 不支持 Not Supported | |
| 震動馬達 Vibration motor | 有 support | |
| NFC | 選配 天線外接 Optional configuration, antenna requires external connection | |
| 5G無線傳輸 （全網通） 5G wireless network | 2G：GSM B3/8 3G：WCDMA B1/8 4G：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 5G：N1/3/28/41/77/78/79 N79（可做移動專網頻段-Used to China Mobile private network） | |
| 天線配置 Antenna configuration | 6PCS（1T4R）+2PCS（雙WIFI+GPS L1+L5） | |
| WIFI | 802.11ac/a/b/g/n/ax WIFI2.4,WIFI5.8,WIFI6 | |
| 藍牙 Bluetooth | BT5.1 | |
| GPS | GPS/Galileo/GLONASS/Beidou. (支持GPS L1和L5雙頻段 高精度定位) (Supports GPS L1 and L5 dual band high-precision positioning) | |
| USB接口 USB interface | TYPE-C USB3.0 | |
| 耳機 earphone | 外接藍牙對講耳機 External Bluetooth intercom headset | |
| 外部擴展接口 External extension interface | 9pin觸點接口，外接NFC天線，外界擴展設備，UART串口；DC供電接口 9-pin contact interface, external NFC antenna, external expansion device, UART serial port; DC power supply interface | |
| 底座接口 Other interfaces | 無，備用電池需外部充電底座充電 No, not supported | |
| 外接攝像頭 External camera | 最大支持1080P USB協議攝像頭 Supports USB protocol camera, external camera, up to 1080P USB protocol camera | |
| 重量要求 weight | 最大裸機重量待定 （帶電池，不帶背夾） Machine weight 176 grams (excluding other accessories) | |
| 尺寸 Machine dimensions | 最大外圍尺寸≤87mm*55mm*30mm(不帶背夾） Maximum peripheral dimension of the machine ≤ 87mm * 55mm * 30mm (excluding other accessories) | |
| 殼體結構 Overall structure | 塑膠模具 mould | 單色模具 Monochrome mold |
| IP等級 Protection level | 送檢時滿足IP68，根據客戶要求大貨至少滿足IP66以上。 ≧IP66，Can meet the IP68 test requirements for GA/T 947.2-2015 industry standard testing | |
| 跌落高度 Drop test height | 大貨滿足2米，任意4個面累計4次； Meet the test requirements of 2 meters, and accumulate 4 times for any 4 surfaces; | |
| 警徽&LOGO Police badge&LOGO | 平面絲印+絲印警徽 Flat screen printing is available as required | |
| 背夾卡位 Clamping position of shoulder clip | 有 Support | |
| 掛繩孔 Holes for tying ropes | 無 Not supported | |
| 物理功能按鍵 Physical function keys | 電源鍵，錄像鍵（短按錄像，長按開啟預錄），錄音鍵（短按錄音 長按手動開啟紅外燈），拍照鍵（短按拍照，長按切換錄像分辨率），SOS鍵（正常模式短按一鍵回放，錄像錄音短按重點標注，長按SOS錄像）， PTT鍵（長按對講，松開接聽），菜單鍵（單按返回，長按開啟白光燈） - Power button（Powering on and off）, - Video recording button (short press for video recording, long press for pre recording), - Sound recording button (short press to start sound recording and long press to manually turn on the infrared light), - Shutter button (short press to take a photo, long press to switch the vedio recording resolution), - SOS button (,briefly press the button to mark the recording, and long press SOS recording), - PTT button (long press intercom, release to answer), - Menu button (single press to return, long press to turn on the white light) | |
| 按鍵結構 Key structure | 外部硬膠電鍍，內部硅膠鍵 External PC plating, internal silicone keys | |
| 電池結構 Battery structure | 內置可更換電池 Build-in replaceable battery | |
| 攝像 camera shooting | 快門控制 Shutter Control | 電子快門 Electronic shutter |
| 連拍功能 continuous shooting | 有（APP） support by APP | |
| 防抖功能 Shake Reduction | MTK EIS 電子防抖 MediaTek EIS electronic anti shake | |
| 畸變 Rear camera distortion | 畸變小于16% Distortion<16% | |
| 對焦距離 focus distance | 1.0m-無窮遠 1.0 meters - infinity | |
| 數字變焦 Digital zoom | 最大16X倍數字變焦 Digital zoom up to 16X | |
| 白平衡 white balance | 自動白平衡 Automatic white balance | |
| 照片尺寸 Photo size | 最大100M Up to 100M | |
| 照片格式 Photo Format | JPEG | |
| 視頻尺寸 Video size | 最大4K*2K 30FPS（3840*2160） Up to 4K*2K 30FPS（3840*2160） | |
| 預、延錄 Pre and deferred recording | 預錄 1080P 30FPS 最大30S；延錄時間可以通過菜單設定（APP支持） Prerecorded time at 1080P 30FPS is up to 30S; The delay time can be set through the menu (support by BWM APP） | |
| 攝中拍 Capture photos during video recording | 在攝像過程中抓拍 Support for capturing photos during video recording | |
| 壓縮格式 Video encoding format | H.264/H.265可選 H.264/H.265 selectable | |
| 影像格式 Video Format | MP4 | |
| 其他功能 Other functions | 開機啟動時間 boot time | <30S |
| 狀態指示燈：紅/綠/藍 Status indicator: red/green/blue | 待機時狀態指示燈為綠色常亮錄像時狀態指示燈為紅色閃爍 The green indicator light is always on in standby mode, and the red indicator light flashes in recording mode 錄音時狀態指示燈為黃色（紅色和綠色同時亮）閃爍， When sound recording, the yellow indicator light (red and green lights up simultaneously) flashes 開機狀態下充電時藍色指示常亮，充滿電后熄滅， 關機狀態下充電時紅色充電指示燈常亮，充滿電后綠色指示燈常亮 The blue indicator is always on when charging at the startup state, and turns off when fully charged. The red charging indicator is always on when charging at the shutdown state, and the green indicator is always on when fully charged 指示燈狀態可以根據要求定制 Indicator status can be customized and modified according to requirements | |
| LED輔助照明 LED auxiliary lighting | 在黑暗的情況下，可以使用白光LED進行輔助照明。 In dark situations, flash lights can be used for auxiliary lighting. | |
| 回放視頻 Video playback | 本機回放視頻時，支持觸摸屏進度條拖動 Support for touch screen progress bar dragging during local video playback | |
| 重點標記 Mark key files | 可對執法儀所記錄的文件做重點標記 Mark key files during the recording process | |
| 水印 watermark | 年月日時分秒 Watermark can add information about year, day, hour, minute, and second | |
| 疊加信息 Superimposed information | 設備序列號+警員信息 Device serial number+user information | |
| 語音播報 Voice Announcements | 有 TTS語音播報 TTS voice announcement | |
| 語音控制 Voice control | 目前只能支持中文，其他語言需要集成第三方語音算法 Currently, Chinese Voice control only, and other languages need to integrate third-party voice algorithms | |
| 按鍵響應 Function key response time | 所有操作響應時間應小于1s All key operation response times should be less than 1s | |
| 移動偵測 Movement detection | 有（APP） support by APP | |
| GPS | GPS 開啟后有位置信息疊加到視頻或照片上 After GPS is turned on, location information is superimposed on videos or photos | |
| 人臉&車牌識別 Face&License Plate Recognition | 選配，用的第三方算法需要另外付費 Optional, the third-party algorithm SDK used requires additional payment | |
| 語音集群對講 Voice cluster intercom | 支持群組對講，端到端對講 Support group intercom, end-to-end intercom | |
| 視頻對講 Video intercom | 支持執法儀到平臺單雙向視頻對講，支持執法儀端到端單雙向視頻對講(需要集成第三方軟件SDK) Support one-way and two-way video intercom from BWM to platform, and support end-to-end one-way and two-way video intercom from BWM (third-party software SDK needs to be integrated) | |
| 菜單語言 OSD Language | 簡體中文/英文 Simplified Chinese/English | |
| U盤功能 USB flash disk function | 有驅模式：連接電腦后，通過在PC端上位機可以進入U(xiǎn)盤模式（可移動硬盤）；無驅模式：連接電腦后，直接進入U(xiǎn)盤模式（可移動硬盤）；兩種模式可選其中一種 Drive mode: After connecting to the computer, Through the upper computer software on the PC BWC can enter the U disk mode (removable hard disk); Driveless mode: After connecting to the computer, BWM can directly enter the USB drive mode (removable hard disk); Choose one of two modes | |
| 軟件升級 Software upgrade | 可OTA升級固件或者通過機器USB接口升級固件 Firmware can be upgraded through OTA or through the machine USB interface | |
| 外接攝像頭 External camera | 最大支持1080P USB攝像頭 Up to 1080P USB camera support | |
| 中國公安認證 China Public Security Certification | 符合行業標準要求中的檢測項目：GA/T947.2-2015 BWM parameter conform to the requirements of the industry standard: GA/T947.2-2015 | |
| 電池 lithium cell | 電池規格 Battery specifications | 內置可更換高壓電池：3300mAh 標稱電壓：3.8V（電池需要兼顧高溫和低溫），低溫-30℃ 1080P續航不小于2小時 Build-in replaceable high-voltage battery: 3300mAh Nominal voltage: 3.8V (battery needs to work in high and low temperature evironment), In low temperature - 30 ℃ evironment BWM 1080P recording time is not less than 2 hours. |
| 內置電池 Built-in battery | 內置小電池：65mAh（10C），標稱電壓3.7V，維持時間5min Built-in small battery: 65mAh (10C discharge), nominal voltage 3.7V, Vedio recording time is less than 5 mins during replace main battery | |
| 充電方式 Charging method | 適配器/PC-USB輔助充電/車載USB Adapter/PC-USB Assisted Charging/Car USB | |
| 充電時間 Charging time | 少于3小時 <3 hours | |
| 重復充電 Number of repeatable charges | 可以重復充電次數應大于等于500次，充放電500次以后電池的容量衰減應不大于20% The number of times the battery can be recharged should be ≥ 500 times, and the capacity attenuation of the battery after 500 times of charging and discharging should be<20% | |
| 使用時間 Usage time | 單電池飛行模式錄像續航9小時，單電池圖傳大于3.5小時 After fully charged, the flight mode 1080P video recording time is 9 hours, and single battery real-time video transmission is greater than 3.5 hours | |
| 待機時間 Standby time | 安卓原生系統實網待機（關掉GPS)>100小時 Real network standby of Android native system (with GPS turned off)>100 hours | |
| 省電模式 Power saving mode | 有，默認30S Yes, it defaults to 30S and enters the power saving mode when there is no operation | |
| 低溫兼容性 Low temperature compatibility | 送檢及低溫地區應準備對應的低溫電池，單電池低溫-30℃續航應大于2小時 Prepare corresponding low-temperature batteries for low-temperature experiments or use in low-temperature areas. In low temperature - 30 ℃ evironment the single battery 1080P recording time of BWM is not less than 2 hours. | |

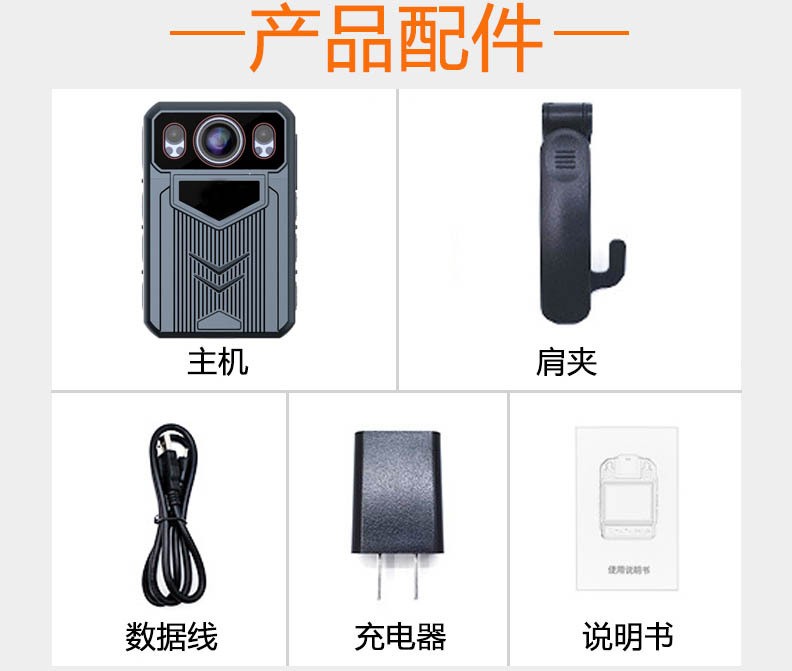

| 配件 fittings of a machine | 背夾 Fixed clip | 有 With matching |
| USB數據線 USB interface data cable | TYPE C USB3.0數據線 TYPE C USB3.0 data cable | |
| 底座 Charging base | 無 not have | |
| 充電器 Charger | 5V/2A 5V/3A PD9V/2.22A,PE+9V/2A可選 Standard configuration 5V/2A, optional 5V/3A PD9V/2.22A, PE+9V/2A | |
| 彩盒 Color box | 有 Black neutral without LOGO, can be customized as required | |
| 工作環境 work environment | 工作溫度 working temperature | -30～55℃ |
| 工作相對濕度 Operating relative humidity | 40%～80% | |
| 貯存溫度 Storage temperature | -40～60℃ | |
| 貯存相對濕度 Storage relative humidity | 63%(30℃) |
